Comsol Multiphysics¶

Summary

License: commercial product. licensed for academic use only

Path: /software/comsol

Module: maxwell comsol

Licensing: concurrent

License server: zitlic03.desy.de default port 1718. Only accessible from within the DESY network.

You can model and simulate any physics-based system using software from COMSOL®. COMSOL Multiphysics® includes the COMSOL Desktop® graphical user interface (GUI) and a set of predefined user interfaces with associated modeling tools, referred to as physics interfaces, for modeling common applications. A suite of add-on products expands this multiphysics simulation platform for modeling specific application areas as well as interfacing with third-party software and their capabilities (from: https://www.comsol.com/products).

Using COMSOL Multiphysics¶

Use modules to setup the environment

module load maxwell comsol
comsol

Check https://www.comsol.de/support/knowledgebase/933/ for information about rendering. In general, accessing maxwell via FastX will give a considerably better experience than using ssh for remote access.

Note: COMSOL stores large amount of files and data in /tmp and the home-directory. Neither have sufficient space. It is hence advisable to redirect COMSOL temporary data. see Comsol storage locations for additional options.

Troubleshooting¶

comsol tends to freeze when running remotely via ssh. That happens occasionally also on display nodes. In that case start comsol selecting software rendering:

module load maxwell comsol
comsol -3drend sw

Getting support¶

For basic support contact uco@desy.de. For in-depth technical questions the COMSOL technical support is available. Asking for support at COMSOL you will need the license number (check "Licensed products" under "Options"). COMSOL comes with an extensive Help-System. Some of the manuals can also be found in the COMSOL installation folder, on maxwell have a look at /software/comsol/6.2/multiphysics/doc/pdf/.

Installing COMSOL Multiphysics manually¶

The installation procedure is very similar for Linux, Mac OSX and Windows. All information needed can be found under COMSOL Downloads & Licenses (or in /afs/desy.desy/products/source/comsol/). The folder is only accessible with a DESY username and password. Available installer:

/colgroup>
OSTypeComments - COMSOL(version)_dvd.iso - ISO Image. Mount the iso image with the OS specific tool. For Windows execute the setup.exe, for Mac OSX or Linux the ./setup file. - COMSOL(version)_lnx.tar.gz - Linux online installer. Create a folder and extract there! ./setup to install. Installer pulls the installation files from remote server. - COMSOL(version)_mac.dmg - Mac online installer, pulls the installation files from remote server. - COMSOL(version)_win.exe - Windows online installer, pulls the installation files from remote server.

Installing COMSOL Multiphysics on Linux¶

By far the simplest is to use the online installer. Fetch the tarball from https://it.desy.de/services/soft/downloads/comsol/ or directly from comsol or directly from AFS (if you have an AFS client installed):

mkdir -p COMSOL
tar xf /afs/desy.de/products/source/comsol/6.2/COMSOL62_lnx.tar.gz -C COMSOL  # example for v6.2.
cd COMSOL
./setup  # See snapshots below

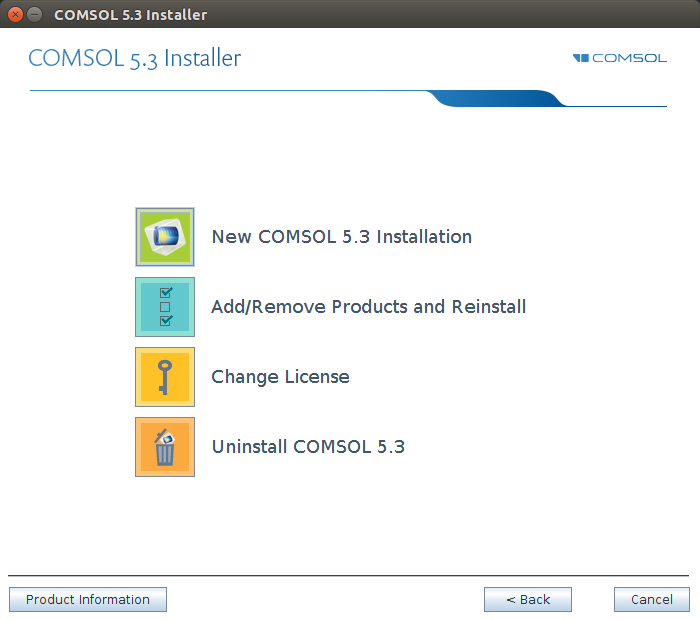

Select New COMSOL installation

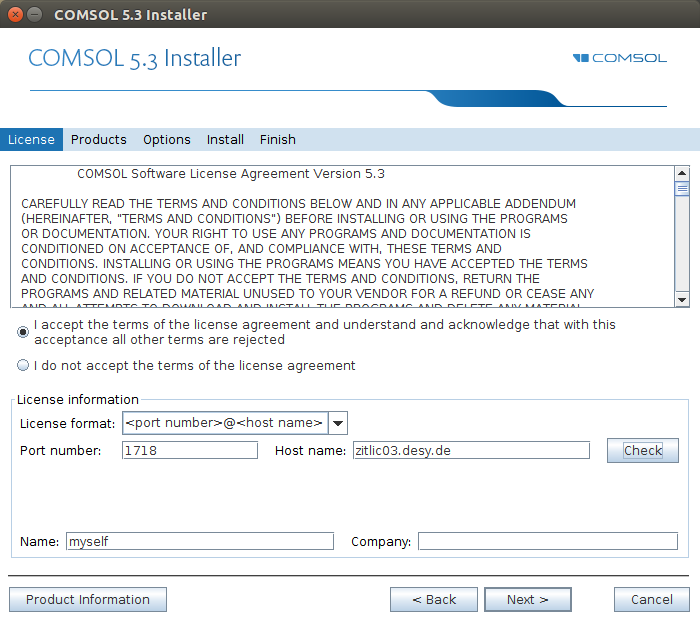

Set the license server. You might want to check.

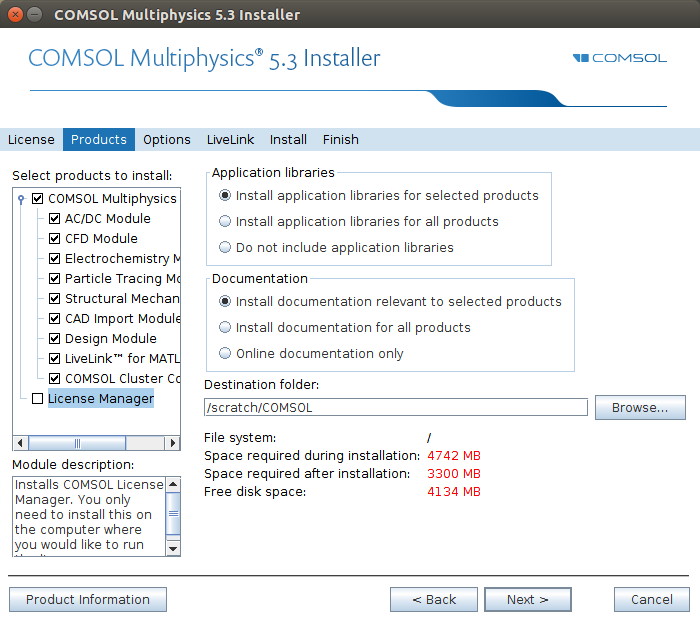

Deselect the License Manager!

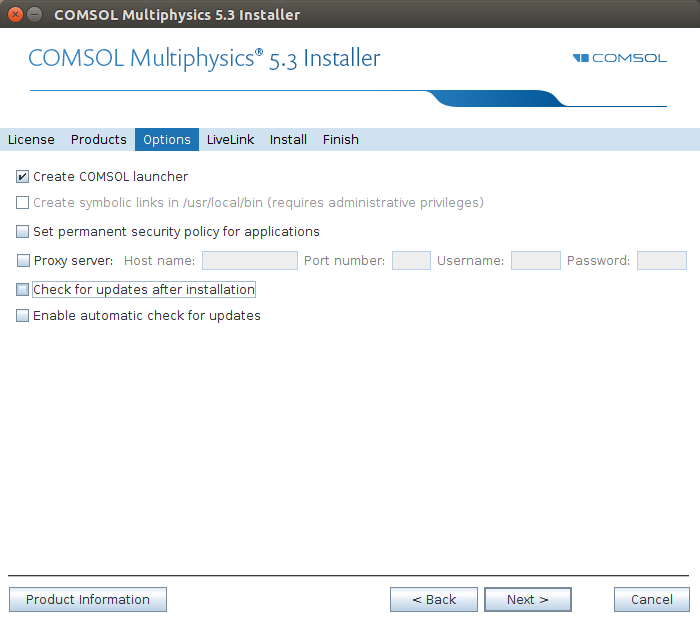

Uncheck updates

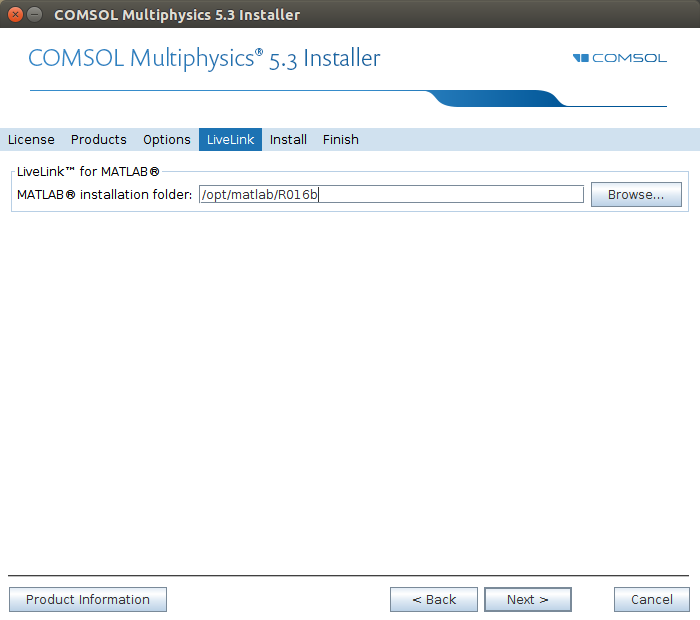

Select a matlab installation if you have one<

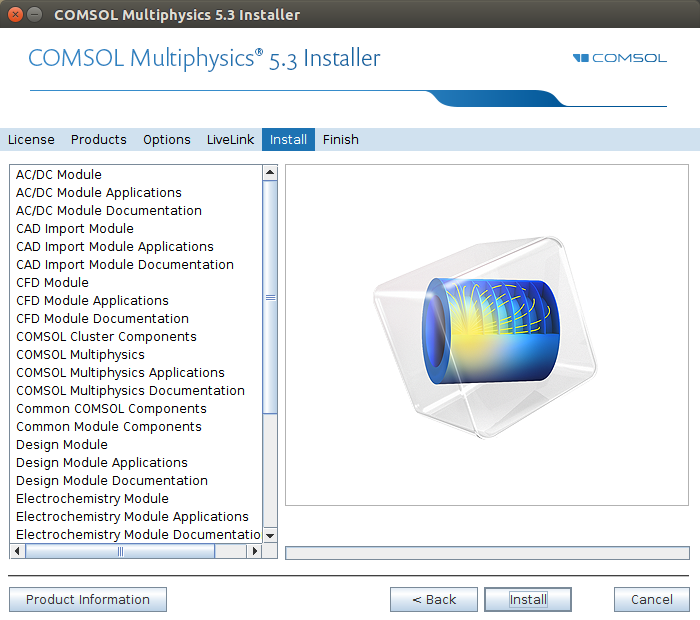

Run the installer

Licensed modules¶

COMSOL Multiphysics
AC/DC module
CAD import module
CADREADER
CFD module
DESIGN module
ELECTROCHEMISTRY module
HEATTRANSFER module
Matlab Link module
MICROFLUIDICS module
MOLECULARFLOW module
Particle Tracing module
RAYOPTICS module
Structural Mechanics module
WAVEOPTICS optics module

You can get an up-to-date list of module and current usage of comsol licenses on PAL or Maxwell with the command 'my-licenses -p comsol'
